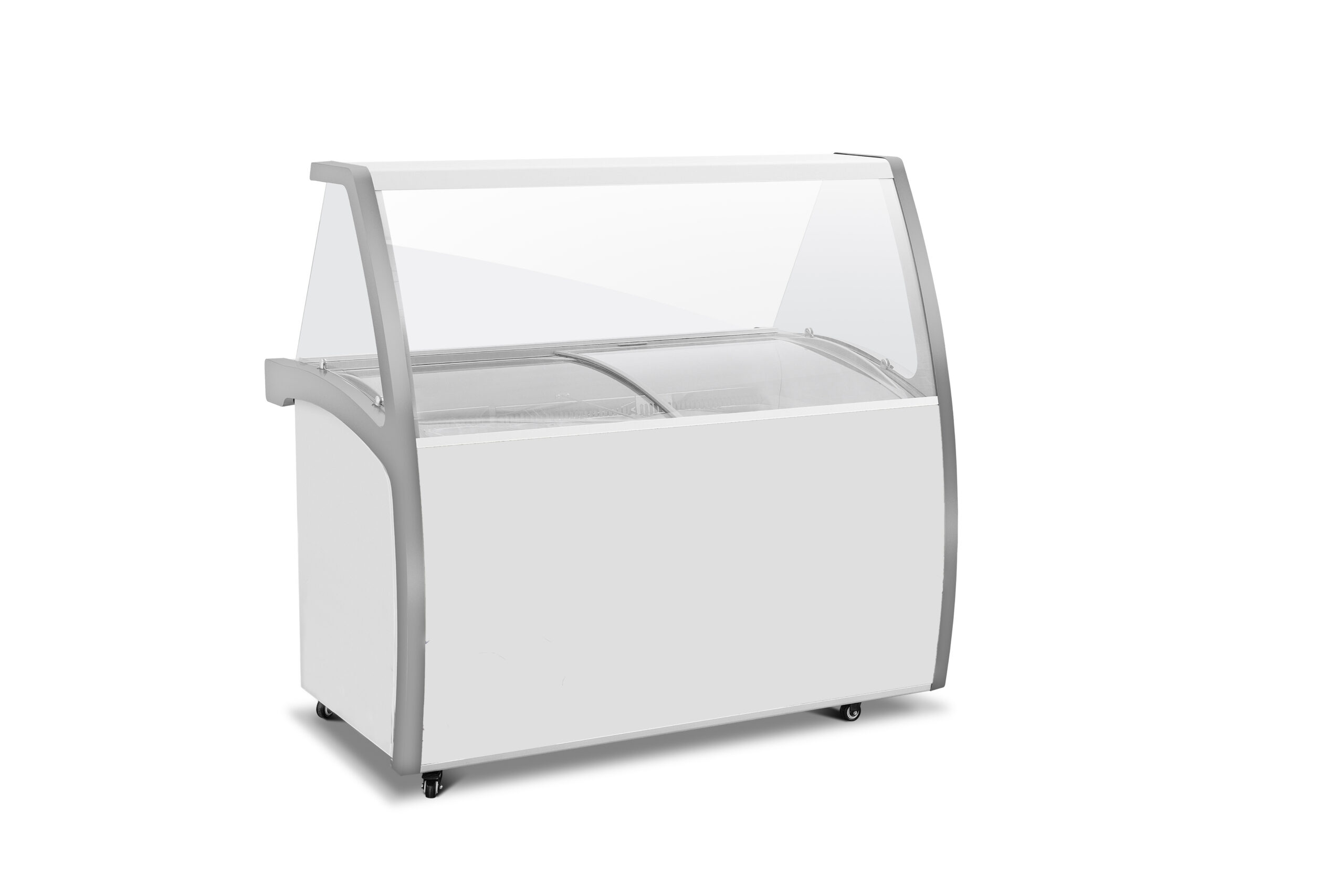

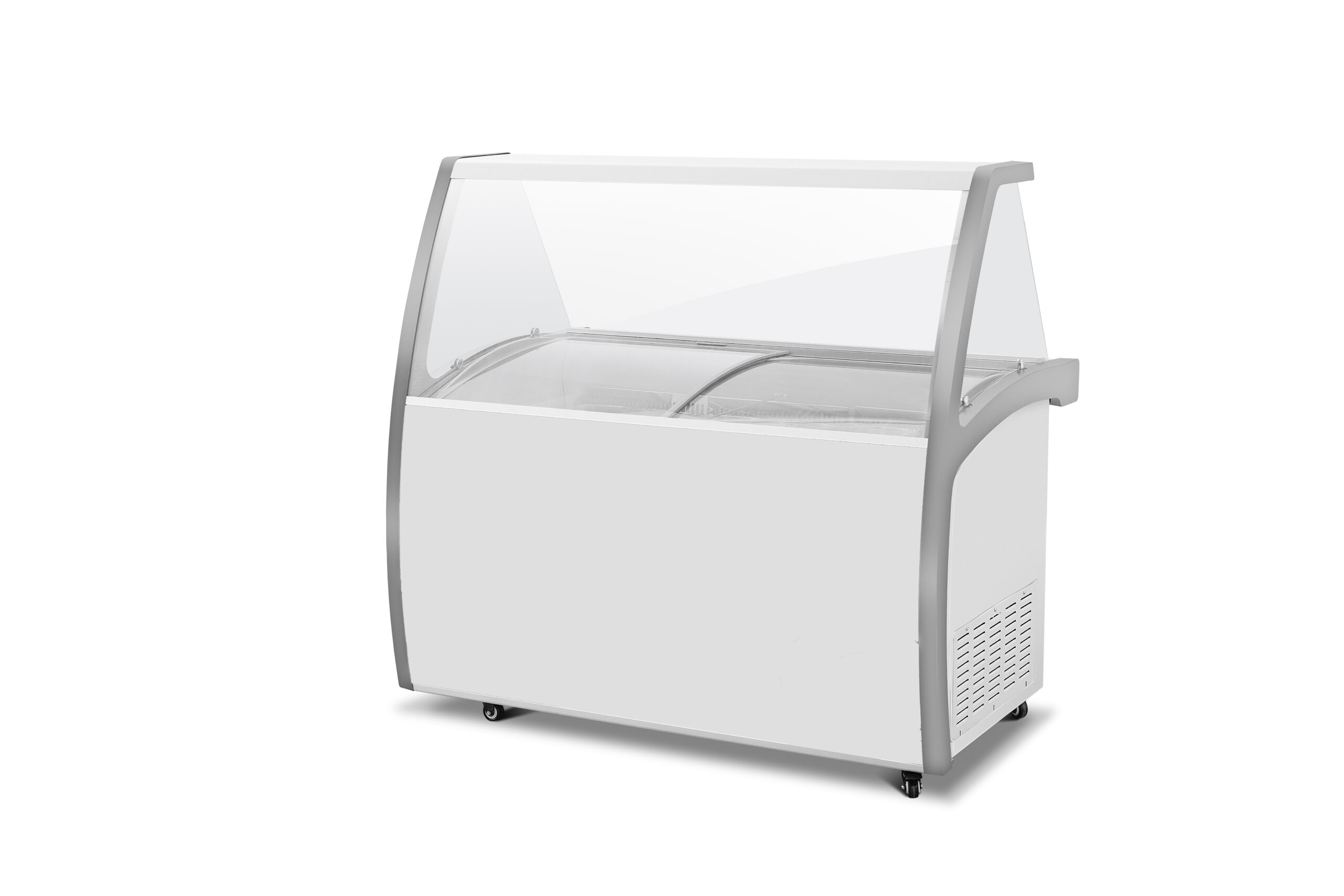

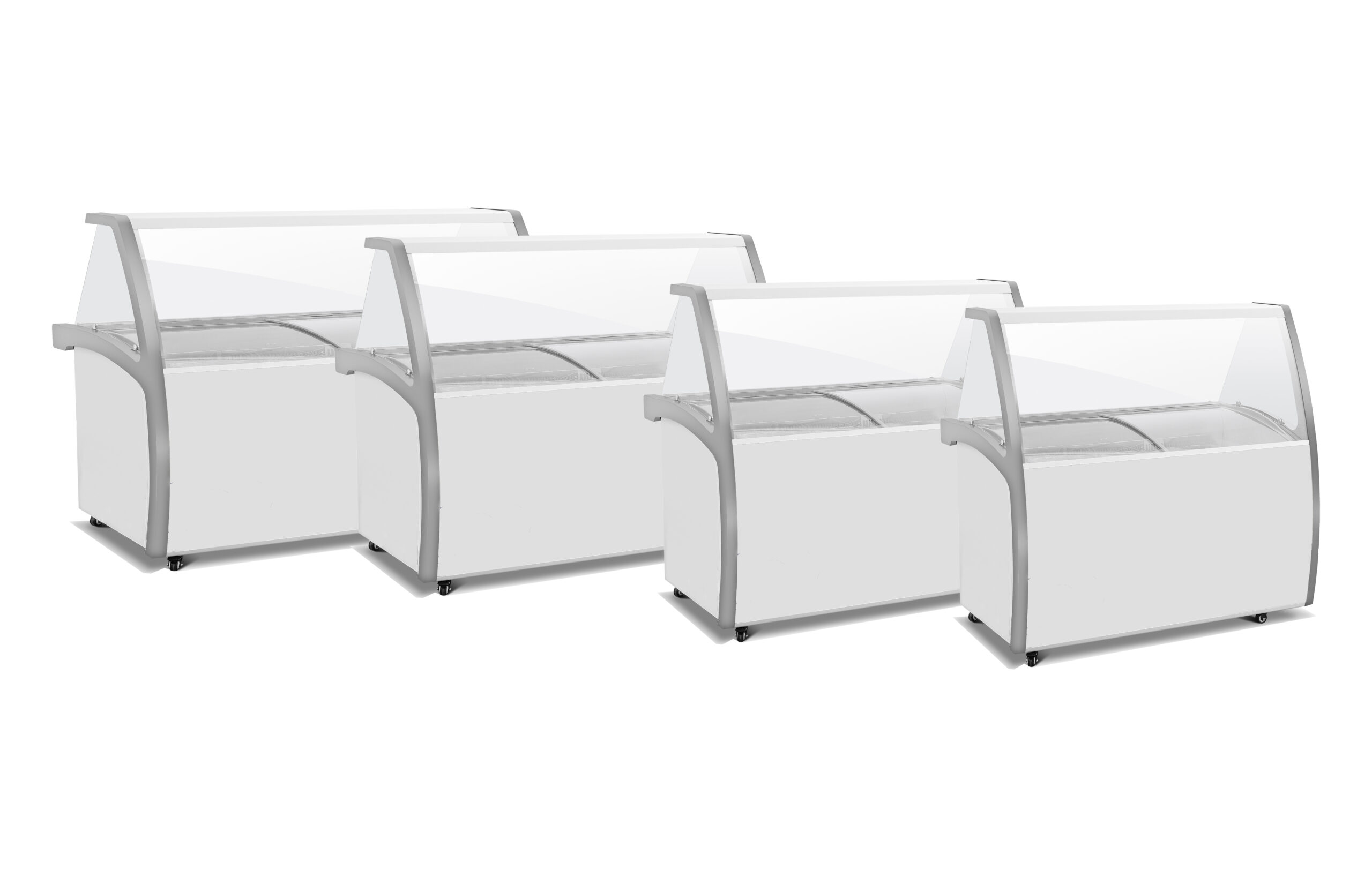

Ice Cream Dipping Cabinet SS Series

Net Volume: 205L to 545L, Large canopy  for excellent Ice Cream display

Features
  • Internal LED light
  • Tempered Glass Lid

  • S/S Base, Pan& Barrel

  • R290 Eco-Friendly Gas

  • Tempered Glass Canopy
  • Lock&Key as Standard
Key Specification

features & Options

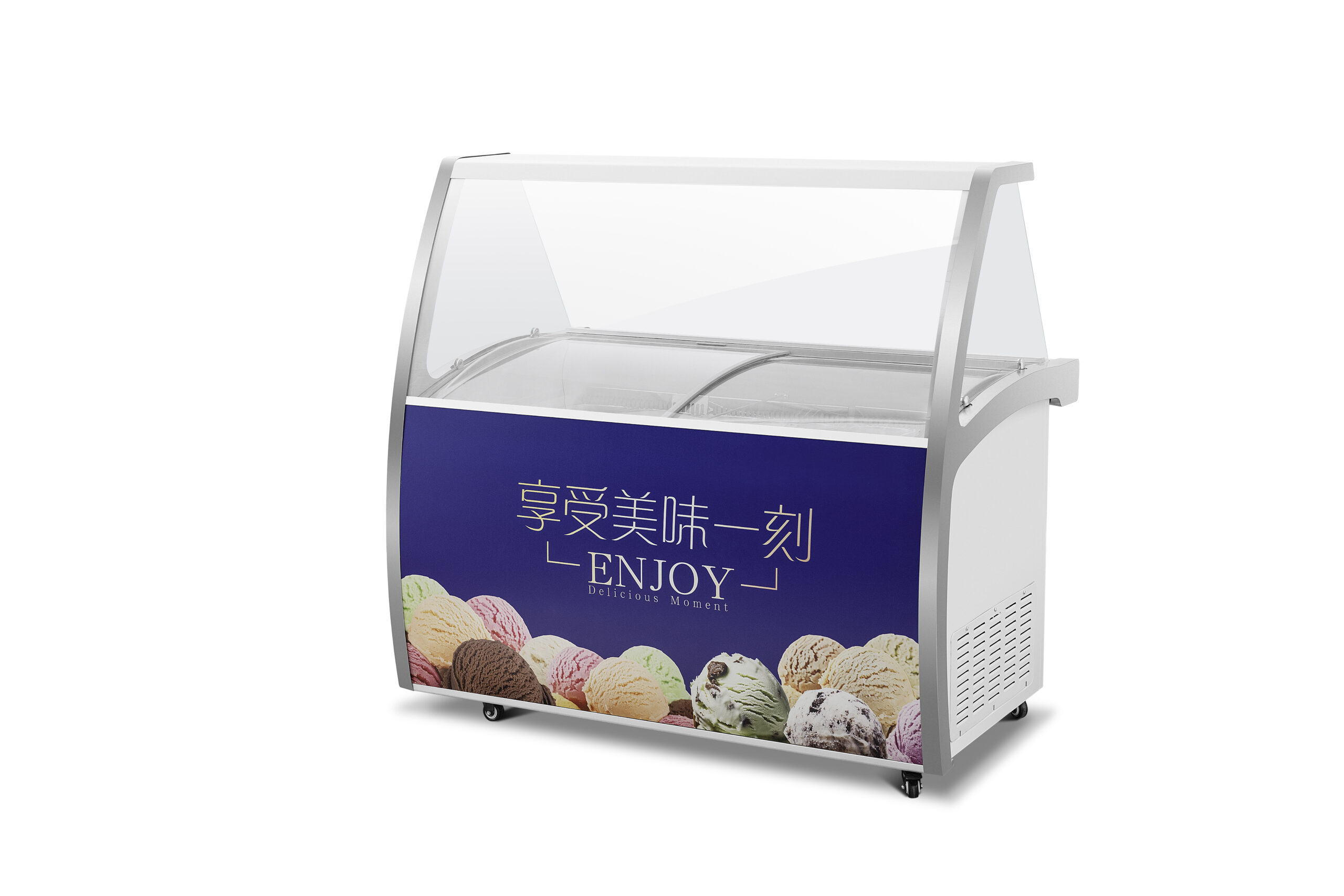

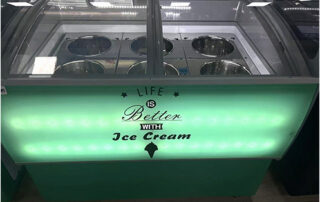

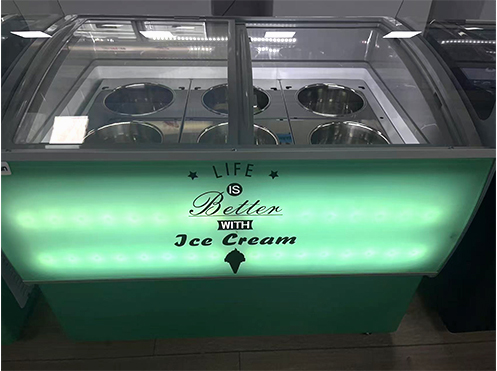

  • Front brand LED LightBox Display,Eye catching design

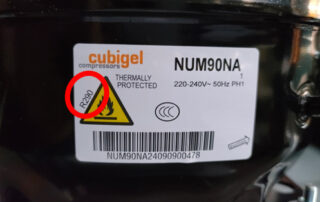

  • Famous Cubigel Compress with R290 Eco-friendly Gas

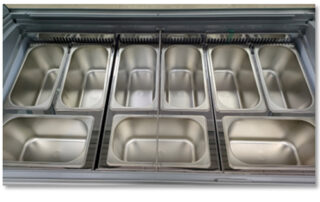

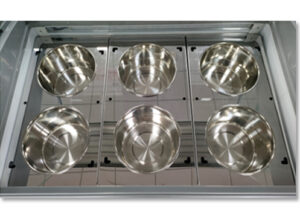

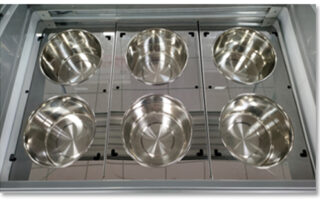

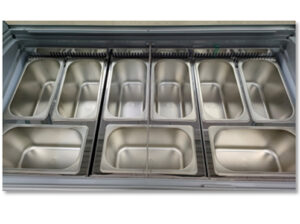

  • 4 to 13 pcs 5L S/S ice cream pans or barrels

  • Glass canopy to prevent product from contaminating

  • Curved Low-E glass sliding doors and locks for easy access while retaining the cold temperature

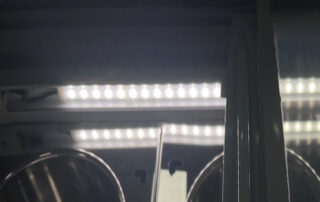

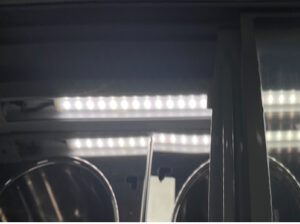

  • Internal and Canopy LED light for better display(Option)

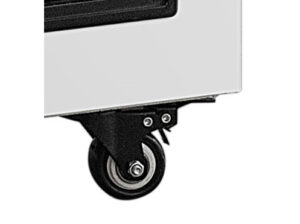

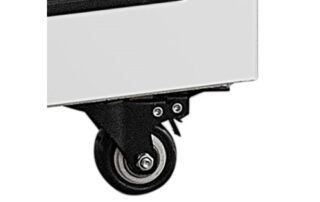

  • Come with four casters for mobility

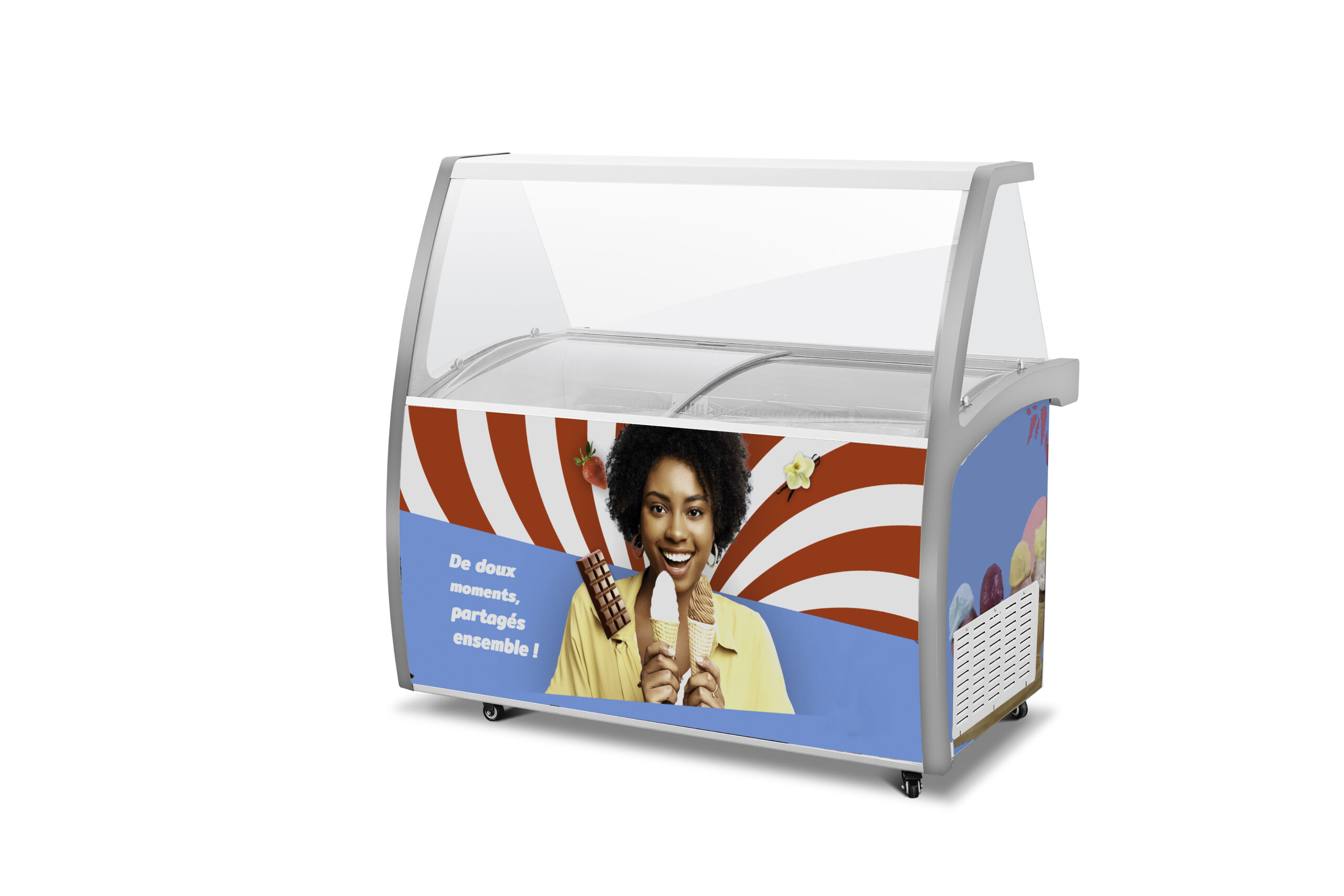

  • Brand Sticker for sales promotion (Optional)

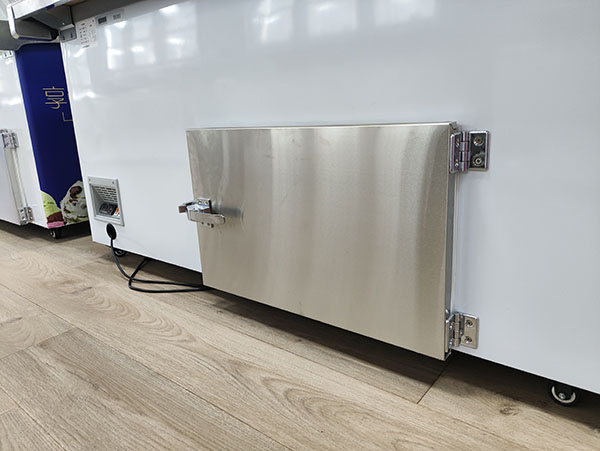

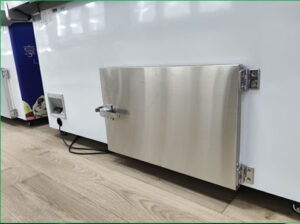

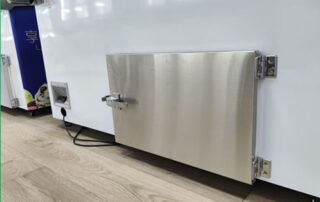

  • Extra storage space underneath the display for accommodating ice cream tubs (Optional)

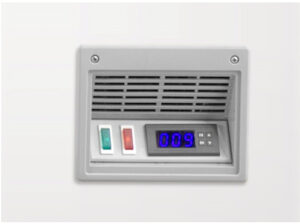

  • Digital Controller- Carel brand（Optional）

SD SS系列 Glass Canopy Front Brand lightbox (option) Caster with brake Canopy LED light (option) In-cabinet LED light (option) Brand Sticker Rear-Bottom storage(option)

Specification

ModelNet Volume(L)Temperature Range(℃)Climate ClassSize with Glass Canopy- W*D*H（mm）Inside Size-W*D*H（mm）5L S/S Pan Q’tyLoading in 40HQ
SD-228SS205-18℃ ~ -25℃7/ST840*830*1285655*550*575448
SD-328SS285 -18℃ ~ -25℃7/ST1085*830*1285900*550*575644
SD-428SS370 -18℃ ~ -25℃7/ST1360*830*12851170*550*575932
SD-528SS480 -18℃ ~ -25℃7/ST1705*830*12851520*550*5751226
SD-628SS545 -18℃ ~ -25℃7/ST1910*830*12851720*550*5751324

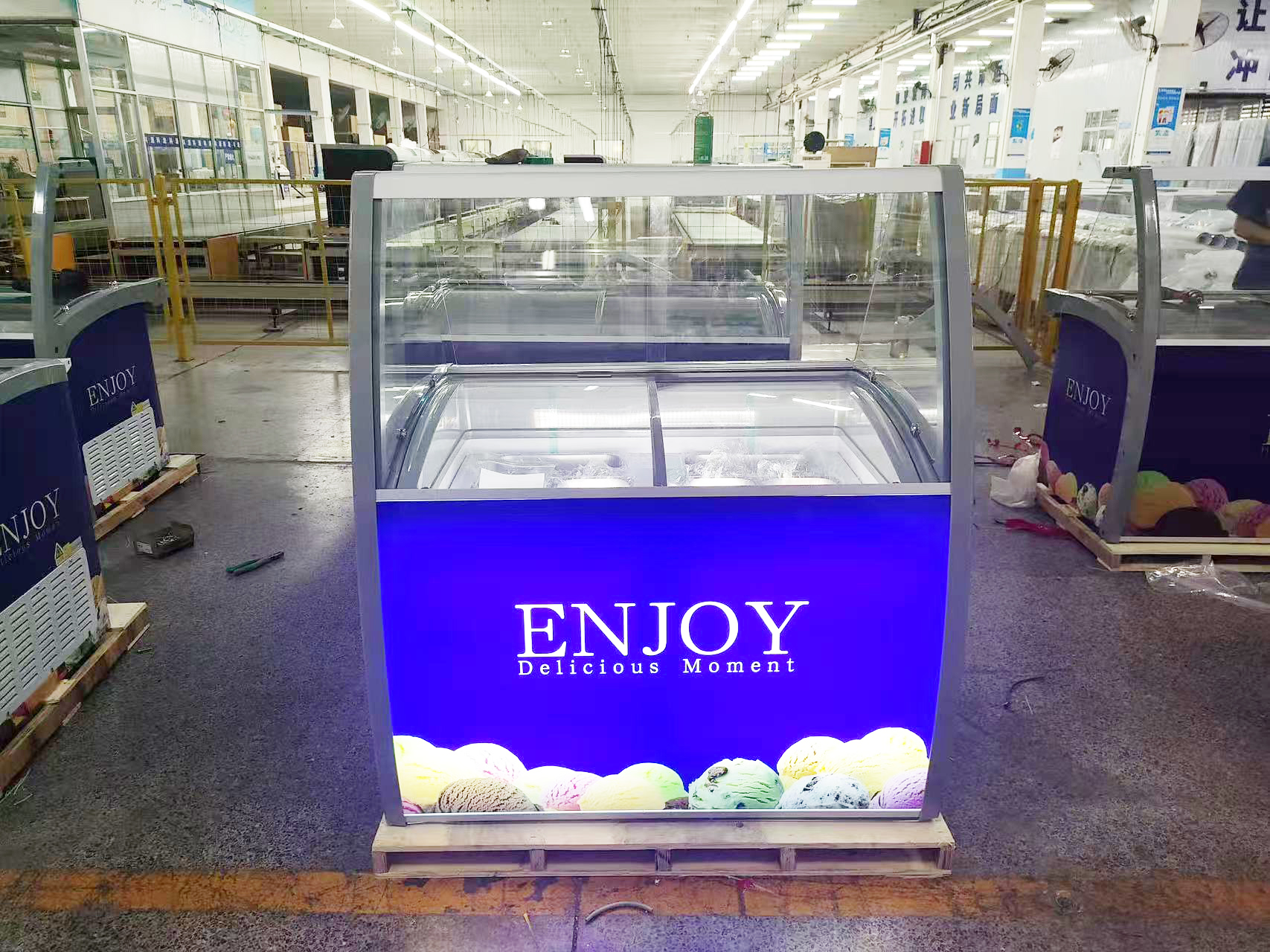

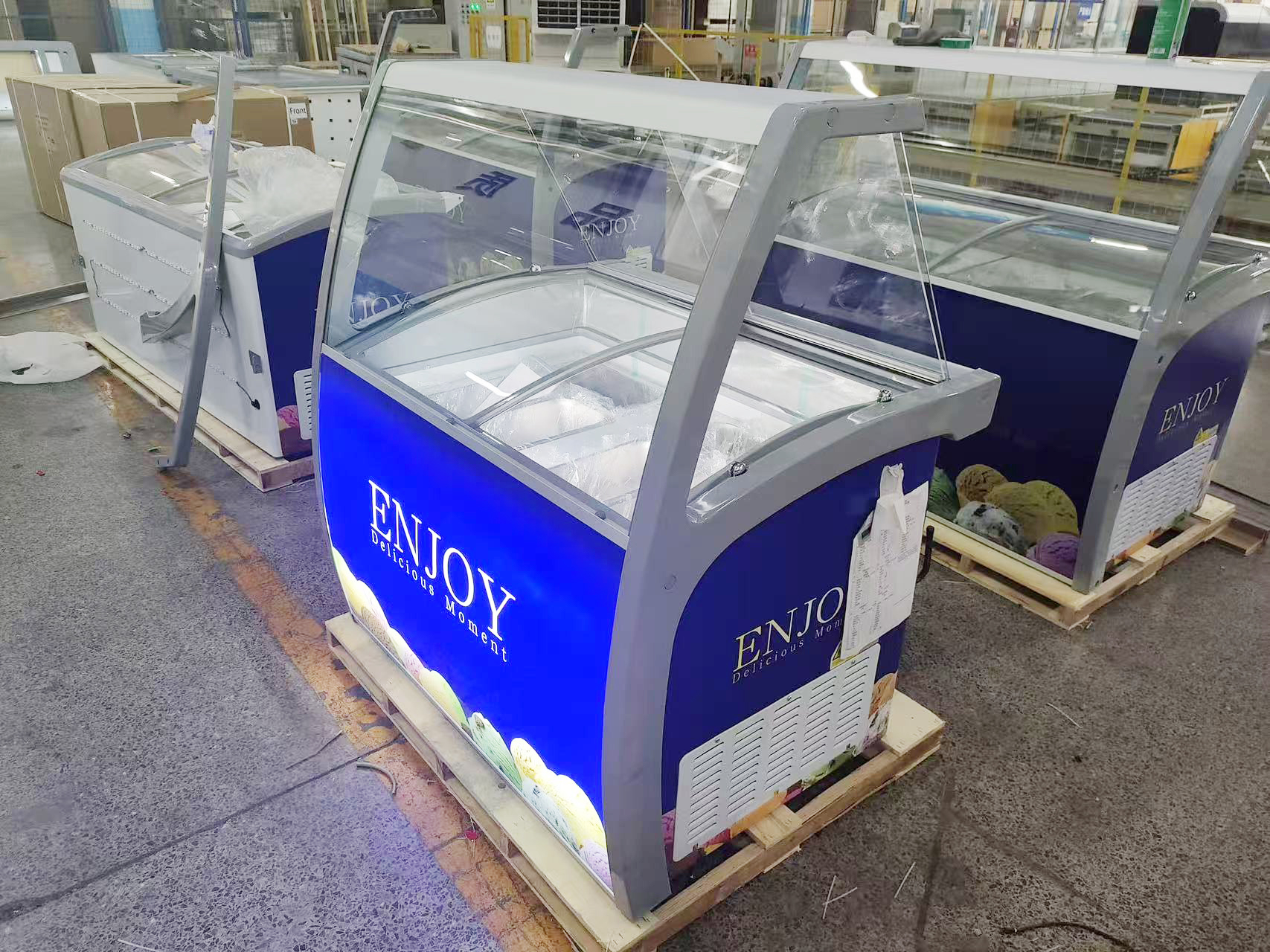

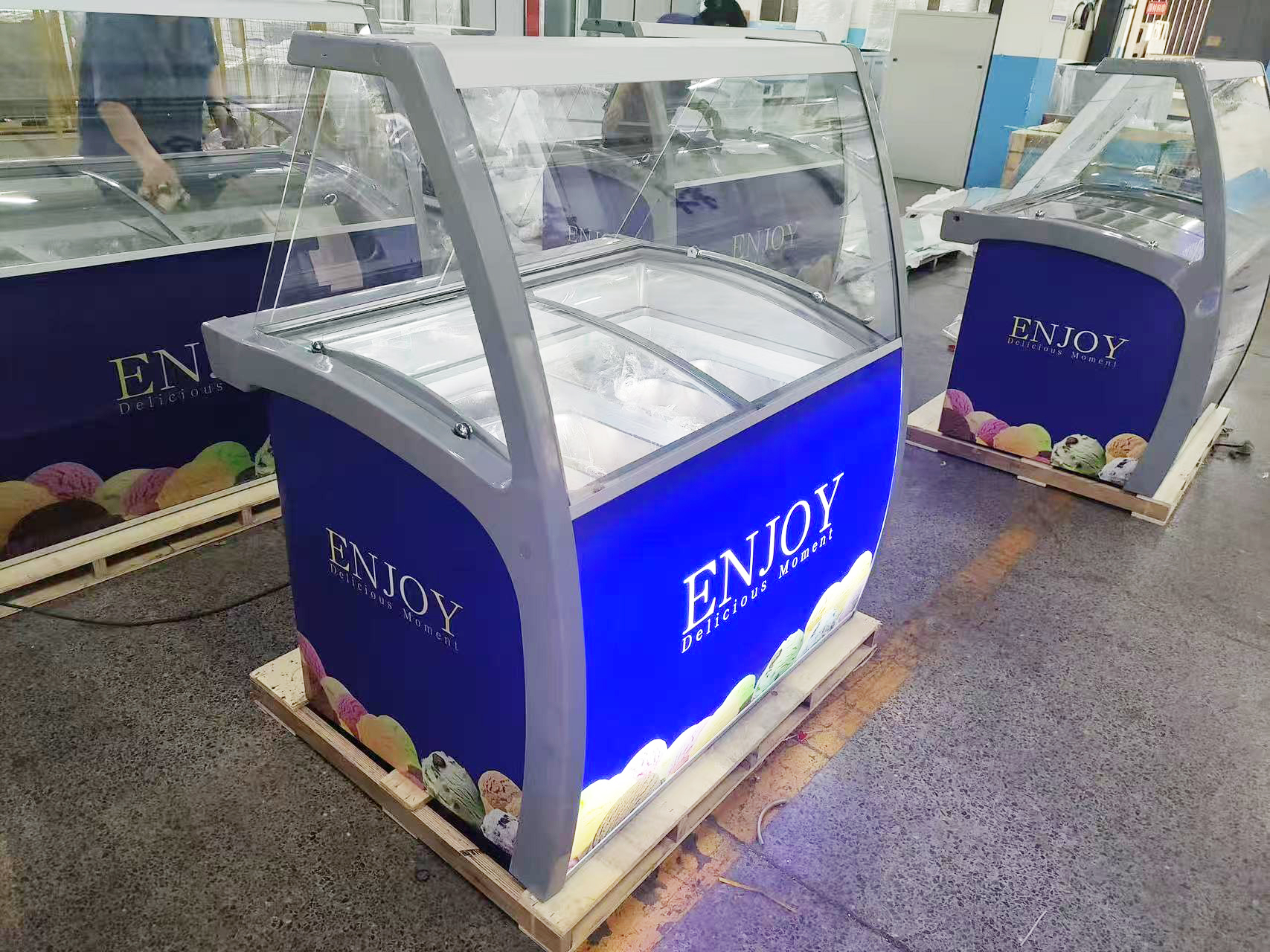

Photoes
