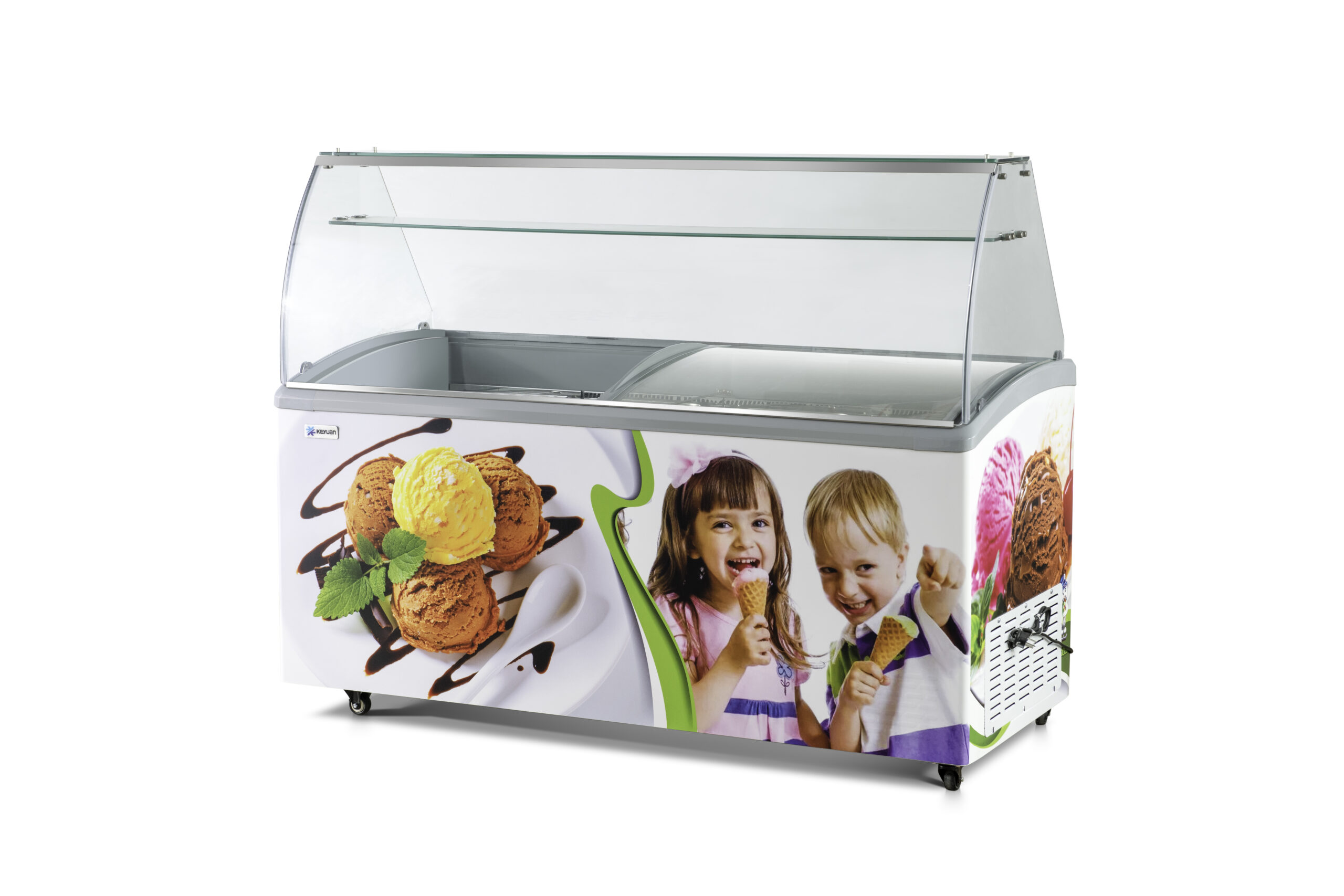

Dipping Cabinet – Curved Lid

Net Volume: 205L to 545L, Most cost-effective Scoop ice cream cabinet choice!

Features
  • Internal LED light
  • Tempered Glass Lid

  • S/S Base, Pan& Barrel

  • R290 Eco-Friendly Gas

  • Tempered Glass Canopy
  • Lock&Key as Standard
Key Specification

features & Options

  • Famous Cubigel Compresser with R290 Eco-friendly Gas

  • Display 4 to 13 pcs 5L S/S ice cream pans or barrels

  • Glass canopy to prevent product from contaminating

  • Curved or Flat Low-E glass sliding doors and locks for easy access while retaining the cold temperature

  • Internal and Canopy LED light for better display(Option)

  • Comes with four casters for mobility

  • Grey plastics trim and door frames, Aluminum frame as optional

  • Brand Sticker for sales promotion (Optional)

  • Extra storage space underneath the display for accommodating ice cream tubs (Optional)

  • Digital Controller- Carel brand（Optional）

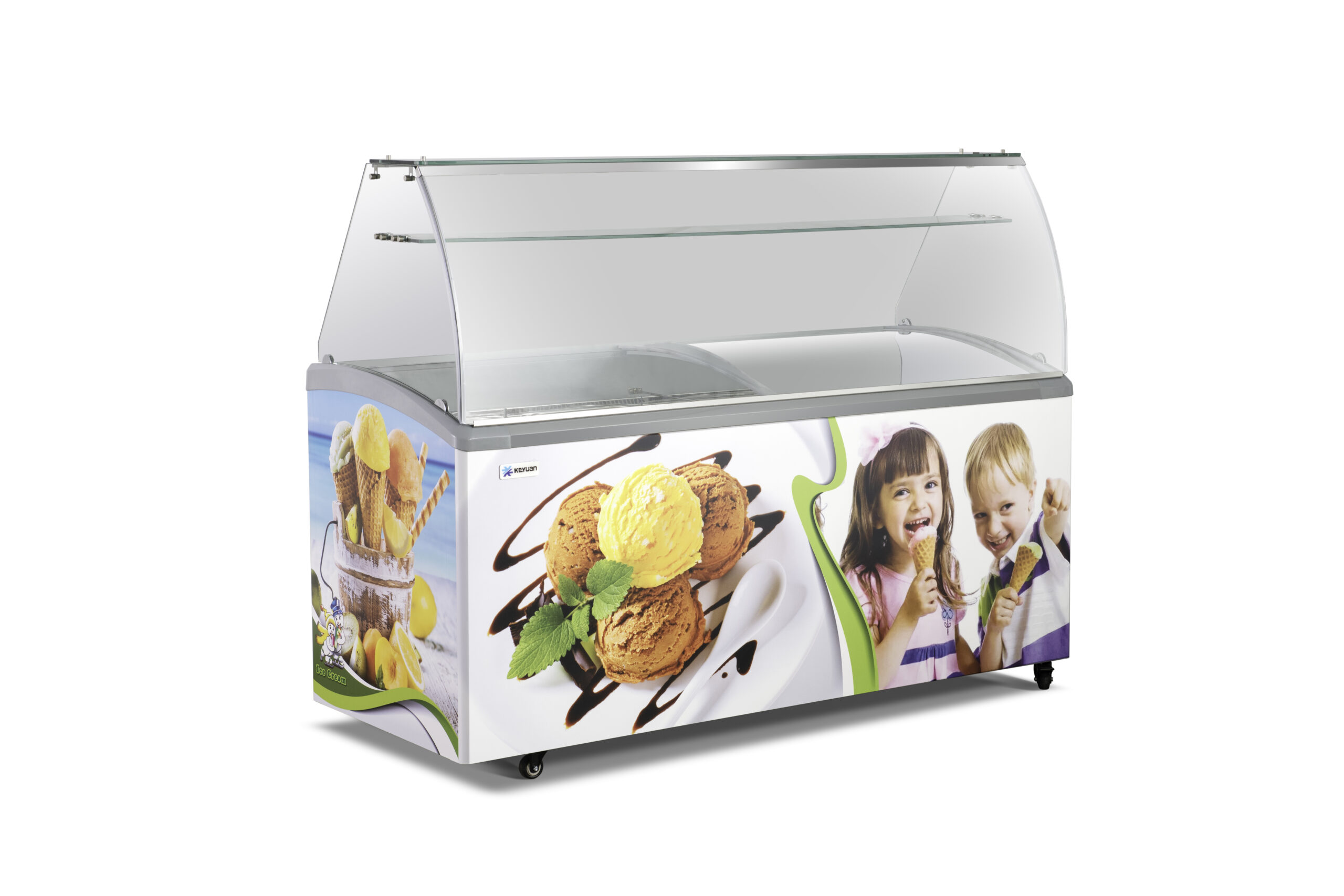

DSC_1717-编辑 Glass Canopy Caster with brake Canopy LED light (option) In-cabinet LED light (option) Brand Sticker Rear-Bottom storage(option) Curved / Flat Glass Lid

Specification

ModelNet Volume(L)Temperature Range(℃)Climate ClassSize with Glass Canopy- W*D*H（mm）Inside Size-W*D*H（mm）5L S/S Pan Q’tyLoading in 40HQ
SD-228S205-18℃ ~ -25℃7/ST800*695*1315655*550*5754pcs108pcs
SD-328S285 -18℃ ~ -25℃7/ST1044*695*1315900*550*5756pcs84pcs
SD-428S370 -18℃ ~ -25℃7/ST1314*695*13151170*550*5759pcs67pcs
SD-528S480 -18℃ ~ -25℃7/ST1660*695*13151520*550*57512pcs53pcs
SD-628S545 -18℃ ~ -25℃7/ST1870*695*13151720*550*57513pcs45pcs
